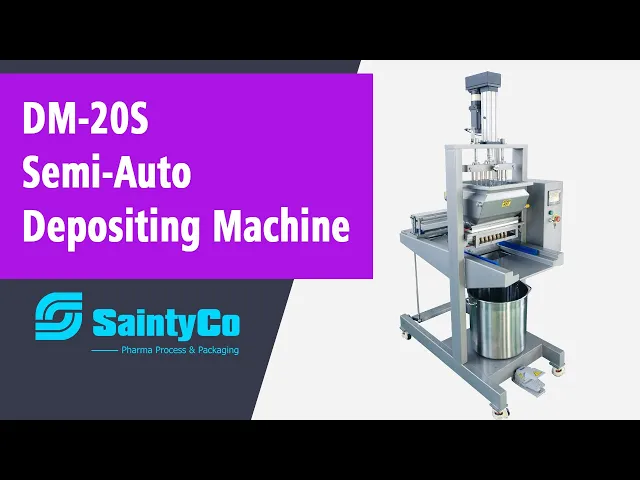

DM-20

Gummy Depositing Machine

SaintyCo

About the System

A semi-automatic depositor for either production or development.

The DM-20 Gummy Depositing Machine is the perfect system for limited space and staff, producing up to 10,000 gummies per hour ranging from 1-7g.

Contact Sales

Key Highlights

Up to 6,000 to 10,000 gummies per hour.

Small Batch Capacity

Produces between 6,000 to 10,000 gummies per hour, making it ideal for R&D, pilot production, or small to mid-sized operations.

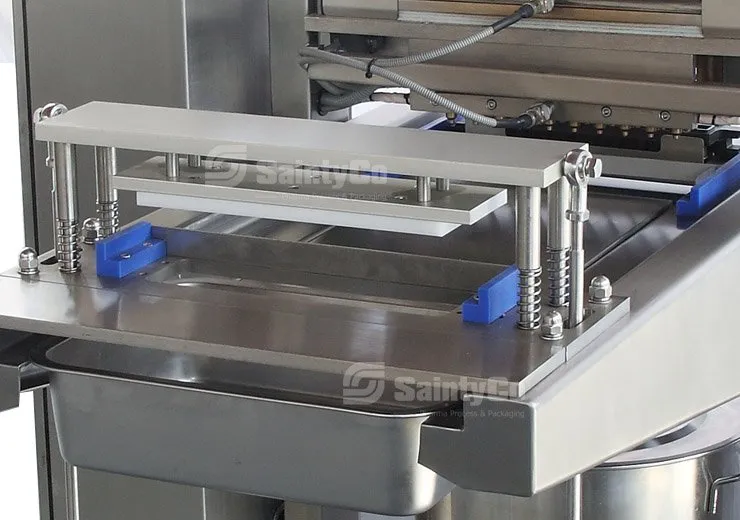

Integrated Deposit & Demolding

Combines depositing and de-molding functions in one compact unit, boosting production efficiency and reducing manual handling.

Consistent Product Quality

Servo-driven dosing and PLC controls deliver smooth, accurately sized gummies with consistent weight, shape, and finish.

Food-Grade Design

Made from stainless steel with starch-free operation, thermostatically controlled hopper, and easy-clean construction, suitable even for pharmaceutical-grade gummy production.

Space & Labor Efficient

Compact footprint (~1252 × 920 × 1937 mm) on wheels and operable by just 1–2 staff members, ideal for facilities with limited space and personnel.

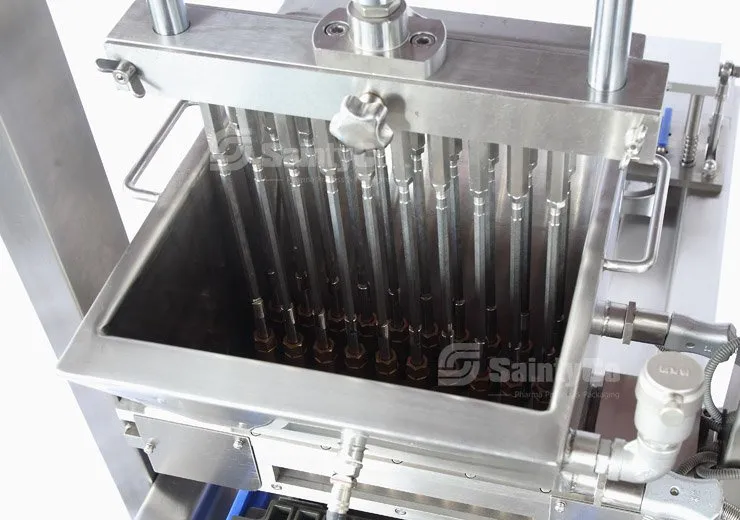

Versatile Hopper Options

Standard 25 L heated hopper with an optional second hopper for dual-color or center-filled gummy formulations.

Ease of Use

Operators will appreciate how straightforward the DM‑20S is to run.

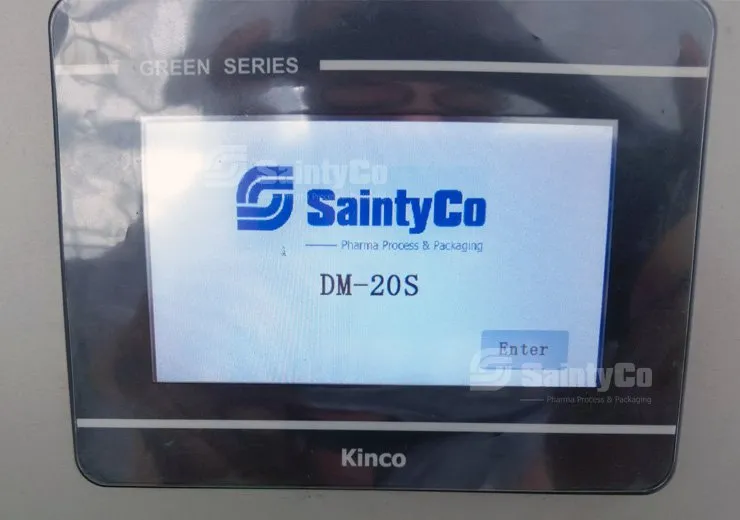

It features a user-friendly HMI touchscreen that guides workflows step-by-step, enabling rapid setup and quick changeovers between batches. The plug-and-play nature of the system means you simply supply power, pour in the mix, and it’s ready to go—no additional auxiliary equipment required. This simplicity minimizes training time and boosts daily productivity.

Efficient & Simple Design

Combine depositing and demolding in a single all-in-one stainless steel unit.

Its compact footprint is perfect for facilities with limited space and staffing. Additionally, the hygienic, starch-free, food-grade construction lowers cleaning complexity and enhances GMP compliance.

High-Quality Results

Engineered to deliver consistent, professional-grade gummies.

The DM-20 uses servo-controlled dosing and PLC programming to maintain precise weight, shape, and texture—customizable from 1 g to 7 g per piece—achieving output rates of 6,000–10,000 units per hour.
